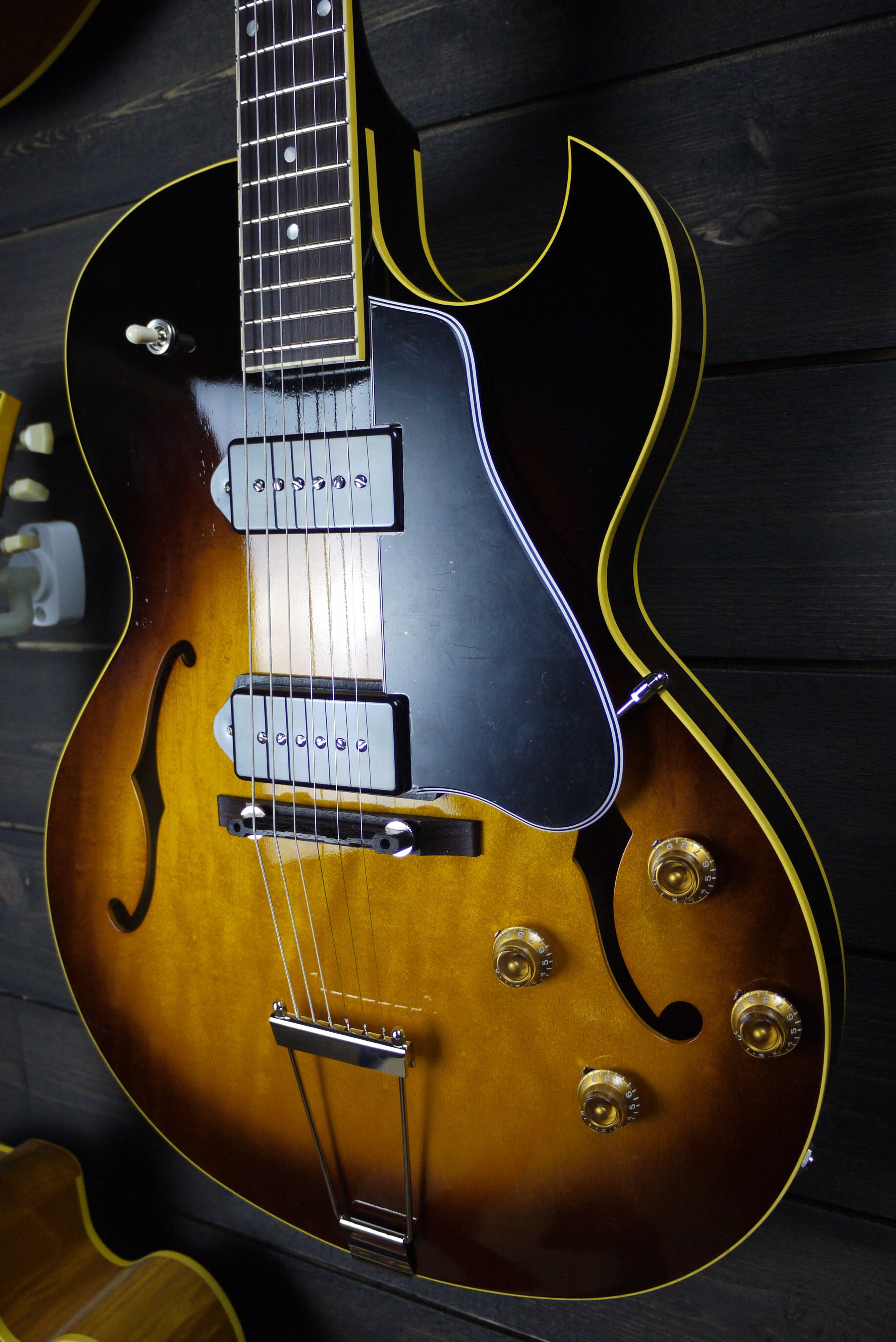

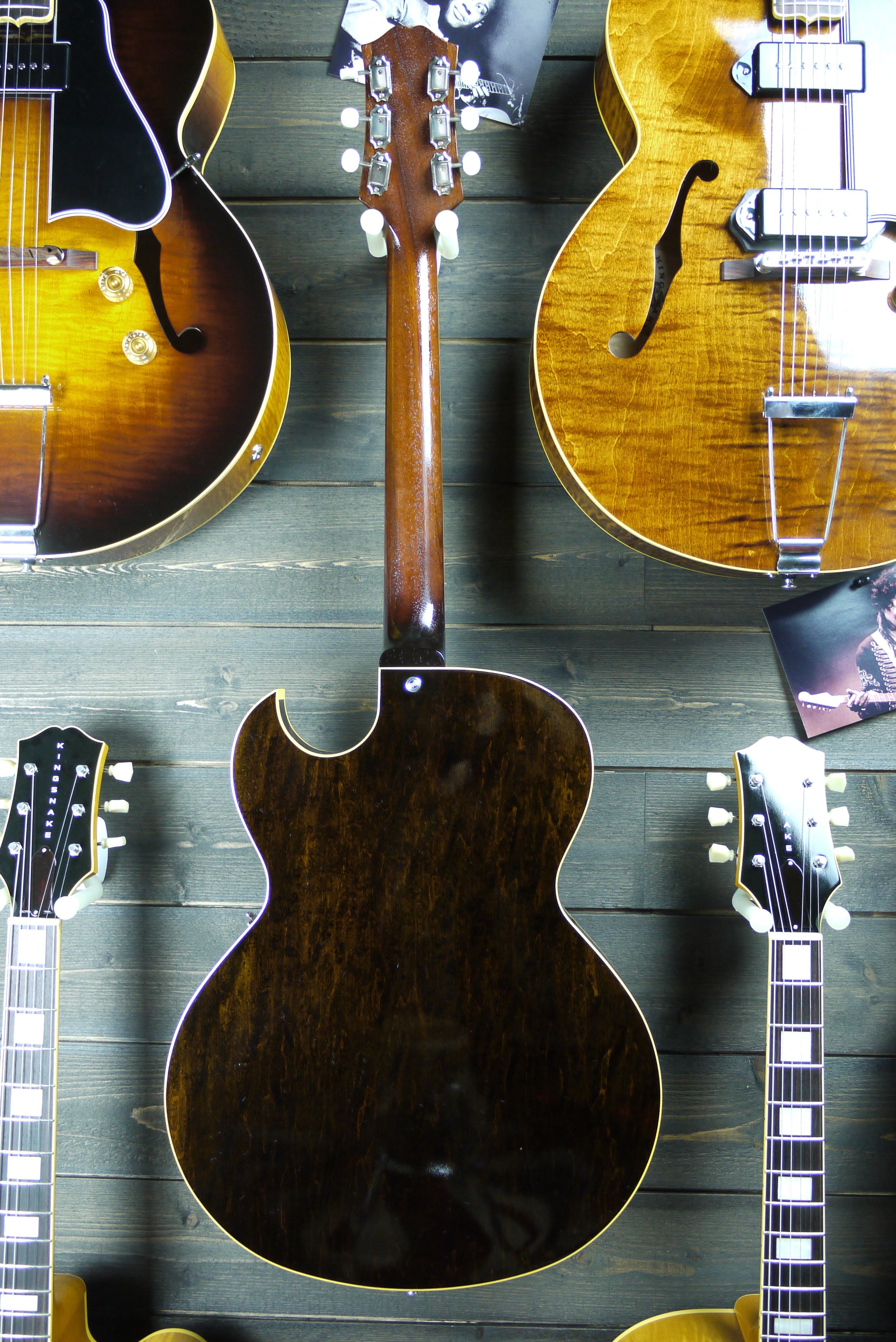

King Snake Curtis


Specifications :

Ebony fretboard,carved spruce plain top and Bigsby are available options, for other options please ask
TOP Plywood Maple
SIDE & BACK Plywood Maple
BODY WIDTH 16" (406.4mm)
BODY DEPTH 1.75” (44.5mm)
BRACING Parallel Bracing
BINDING Single Ivoroid (Body & Neck)
PICKGUARD BK 4P
NECK Mahogany, shape U
THICKNESS 22mm(1stF)-24.5mm(9thF)
FINGERBOARD Rosewood RADIUS 12” (305R)
SCALE 24 3/4" (628mm)
WIDTH of Fingerboard 42.5mm(Nut)-53mm(12thF)
NUT WIDTH Bone/ 1.68” (42.67mm)
BRIDGE Tune-O-Type on Rosewood / Pinned Style
TAILPIECE Custom Trapeeze-Style WIDTH of Fingerboard 42.5mm(Nut)-53mm(12thF)
TUNER Gotoh SD-90
FINISH 100% Lacquer, little alcohol type filler first and only nitrocellulose lacquer for finish
PICKUPS KINGSNAKE TB-1 x 2
Neck : magnet wire : AWG42, Plane Enamel / Magnet : ALNICO-5 / DC Resistance : 7.5KΩ
Bridge : magnet wire : AWG42, Plane Enamel / Magnet : ALNICO-4 / DC Resistance 8.0KΩ
CONTROL 2 Vol. & 2 Tone
STRINGS D'Addario EXL115(.011-.049)
COLOR Amber Natural / Tobacco Sunburst / Dirty Walnut and more
CASE Hardshell Case(White & Black Line)
